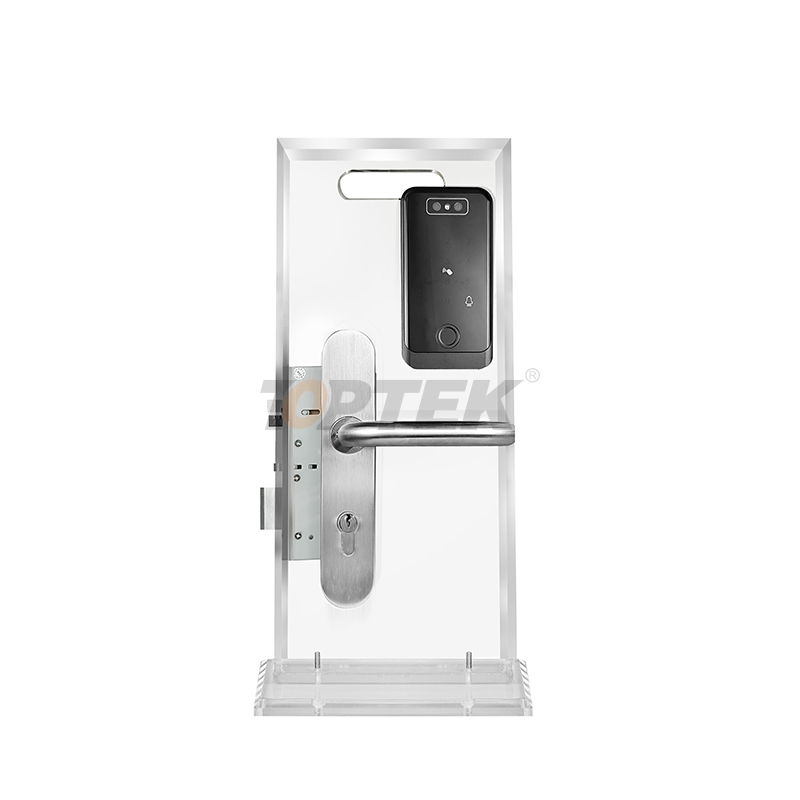

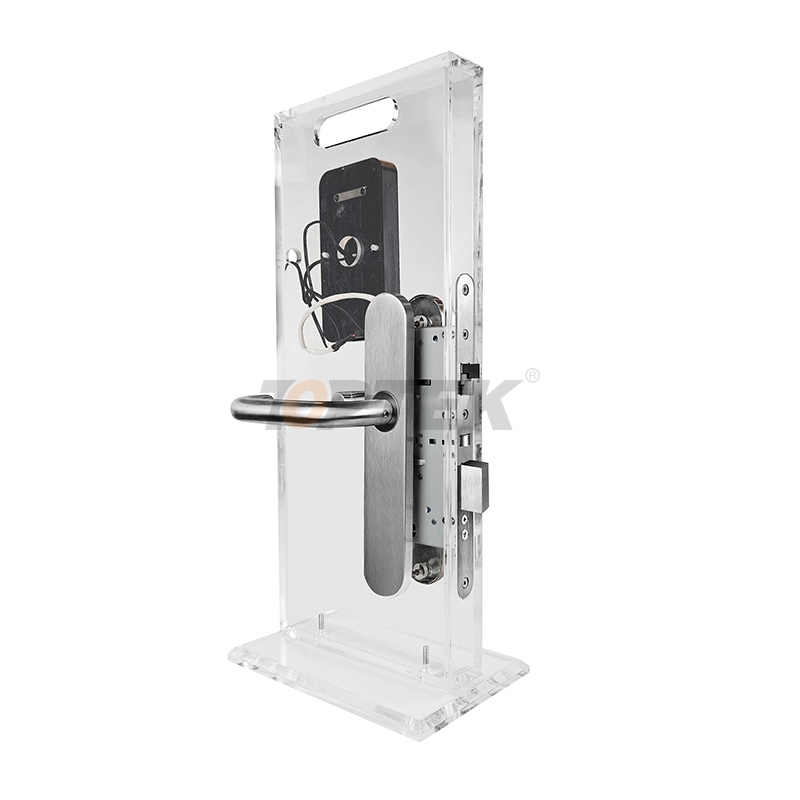

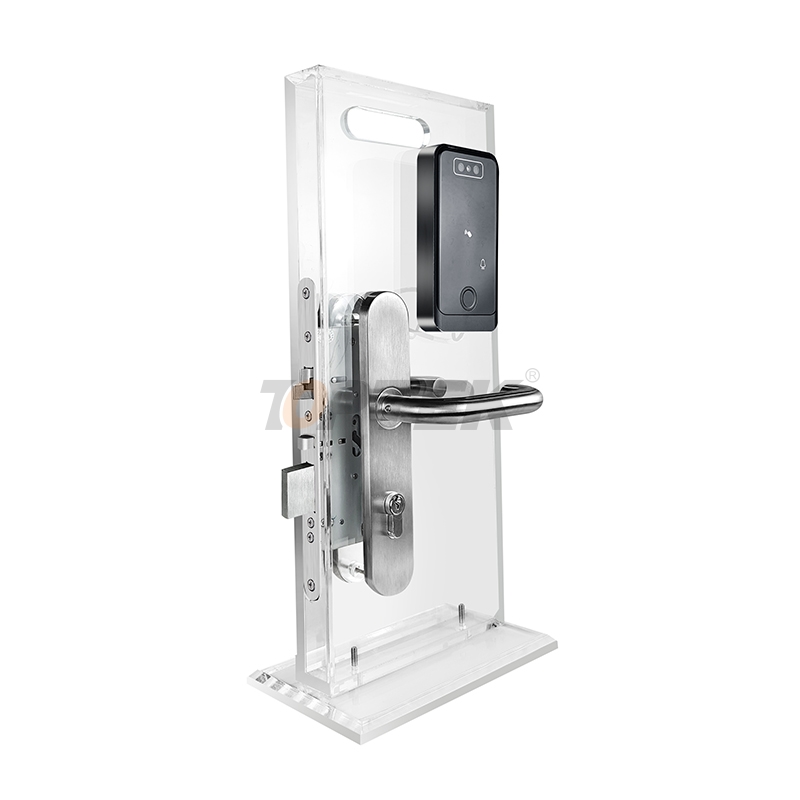

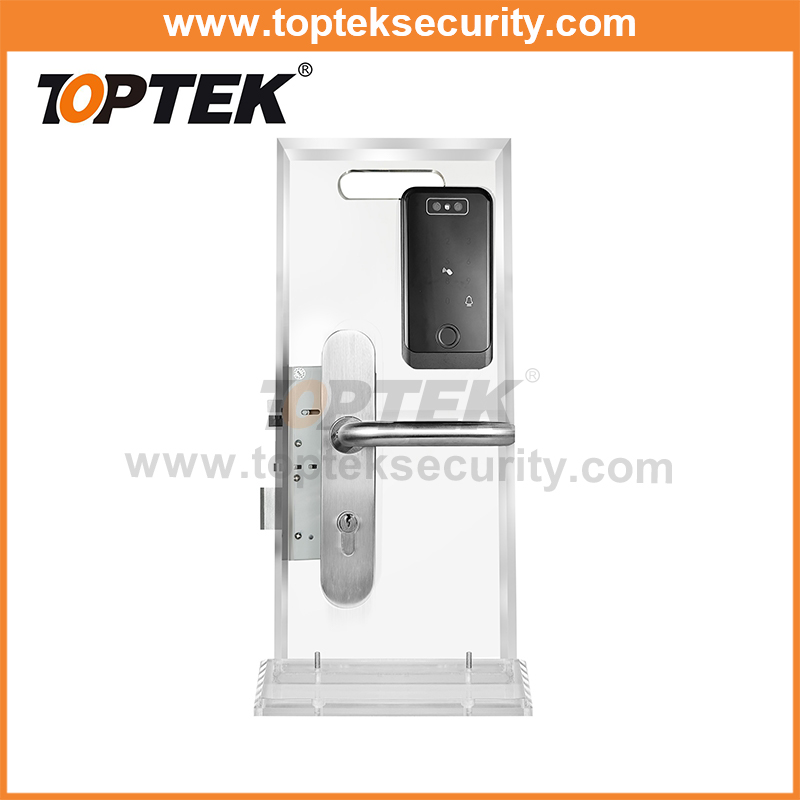

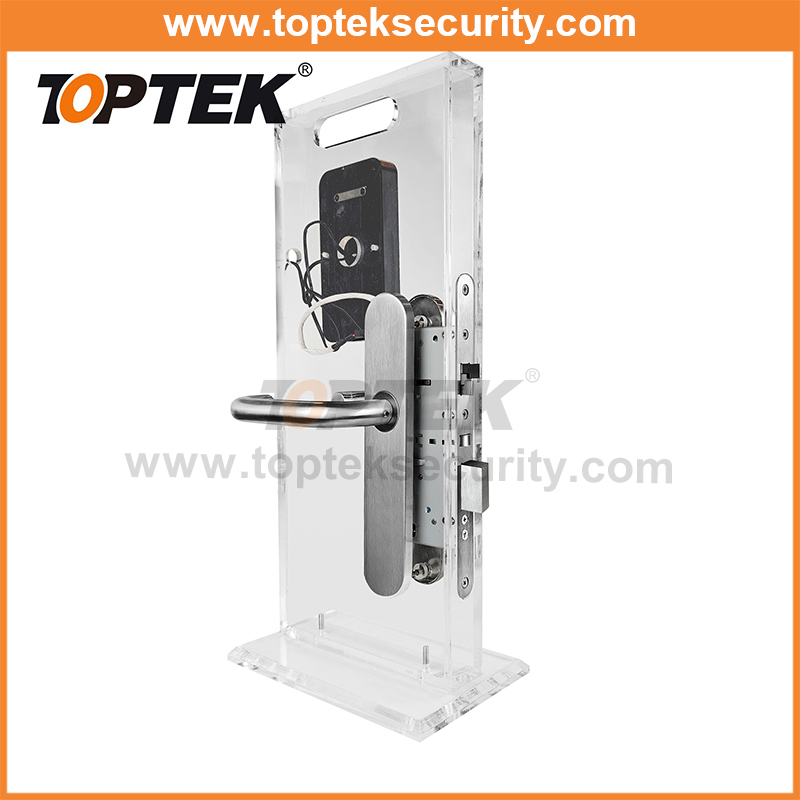

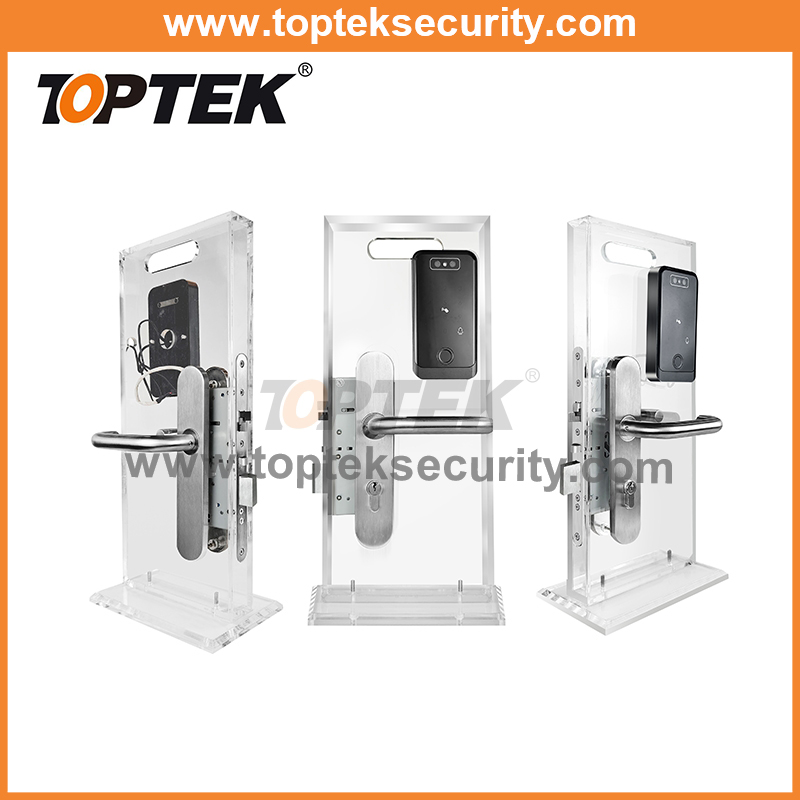

Access Control Self-locking Door Lock TK-ACC3DF-EKZM5572

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

TK-ACC3DF-EKZM5572

1. Product Summary

TK-ACC3DF-EKZM5572 Smart Electric Mortise


Integrated Access Control:

• 3-in-1 system: Mechanical lock + Electric mortise + Smart controller

• TT LOCK/TUYA compatible – Mobile app control

• Auto-locking on door closure



Multi-Mode Access:

✓ IC Card ✓ Passcode ✓ Fingerprint

✓ 3D Face ✓ Bluetooth ✓ Key



Power & Compliance:

• 12V/24V DC operation

• European security standard

Self-locking Door Lock

Access Control Door Lock

electric door lock

2.Product Details

Construction


· The TK-ACC3DF-EKZM5572 features:

· 304 stainless steel mechanical handle

· Solid copper cylinder

· Aluminum alloy case with tempered glass panel

· 201 stainless steel face plate and striker plate (with roller bolt for door thickness adjustment)

· 304 stainless steel internal components (latch, deadbolt, auxiliary latch, spindle follower)

· Four sensors: latch, deadbolt, cylinder, and auxiliary latch


Security

The TK-ACC3DF-EKZM5572 meets EN12209 Grade One standard, endures 200,000+ cycles, and features premium materials with precision engineering.



Durability

The TK-ACC3DF-EKZM5572 complies with EN 12209-2016-GZ Grade One standard, proving exceptional durability and long-term performance.

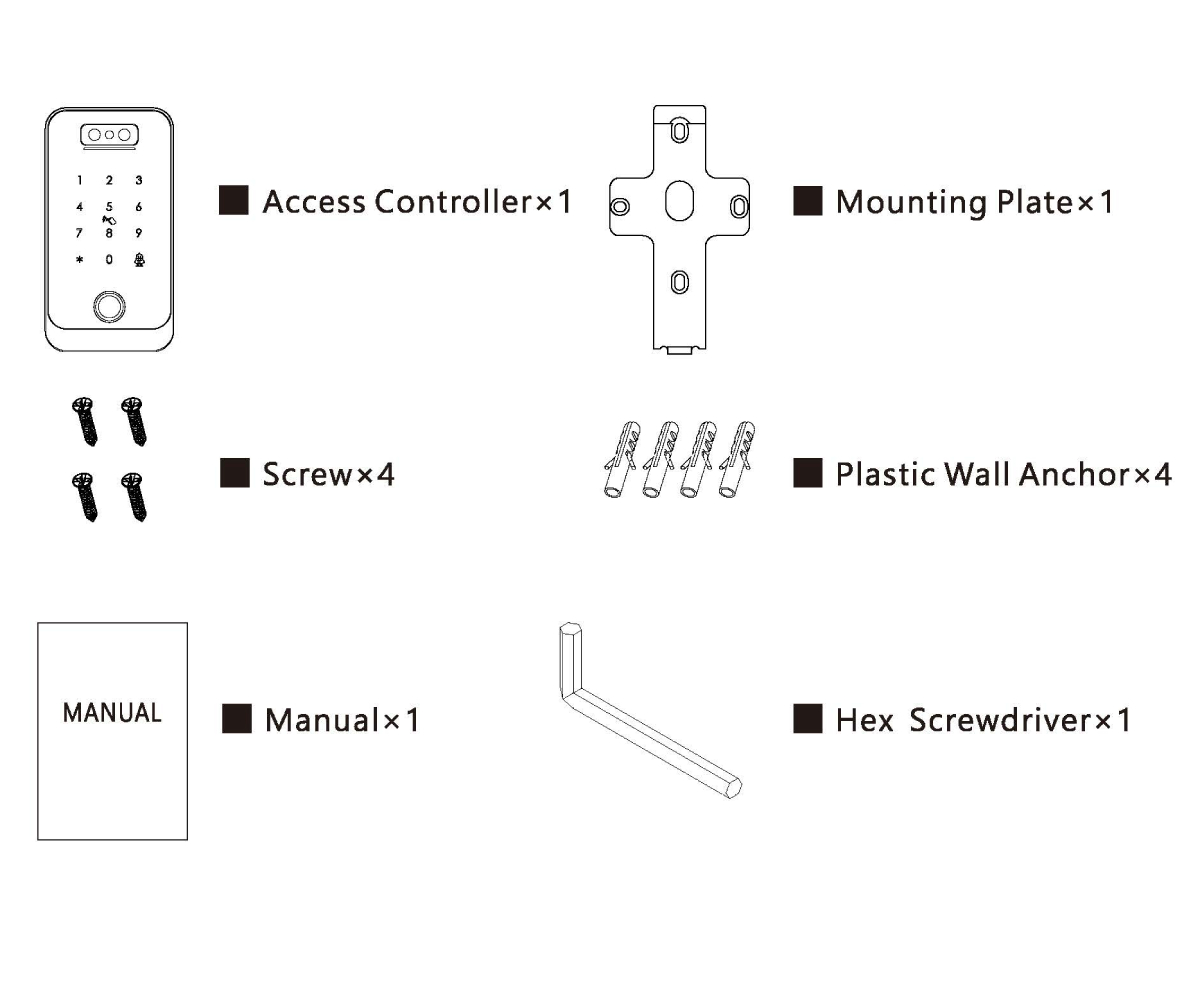

Product Accessories

The TK-ACC3DF-EKZM5572 includes one Access Controller, one Mounting Plate, four screws, four Plastic Wall Anchors, one Manuel, and one Hex Screwdriver.

access control systems

access systems

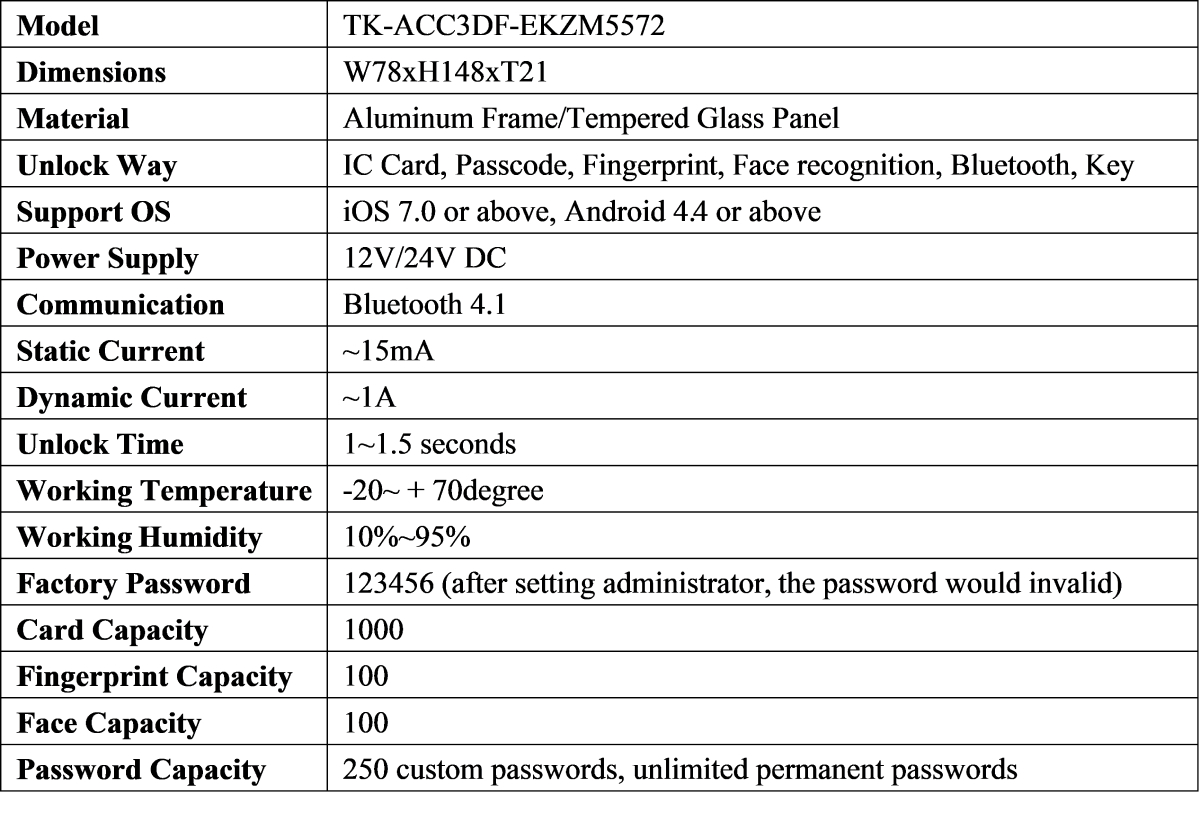

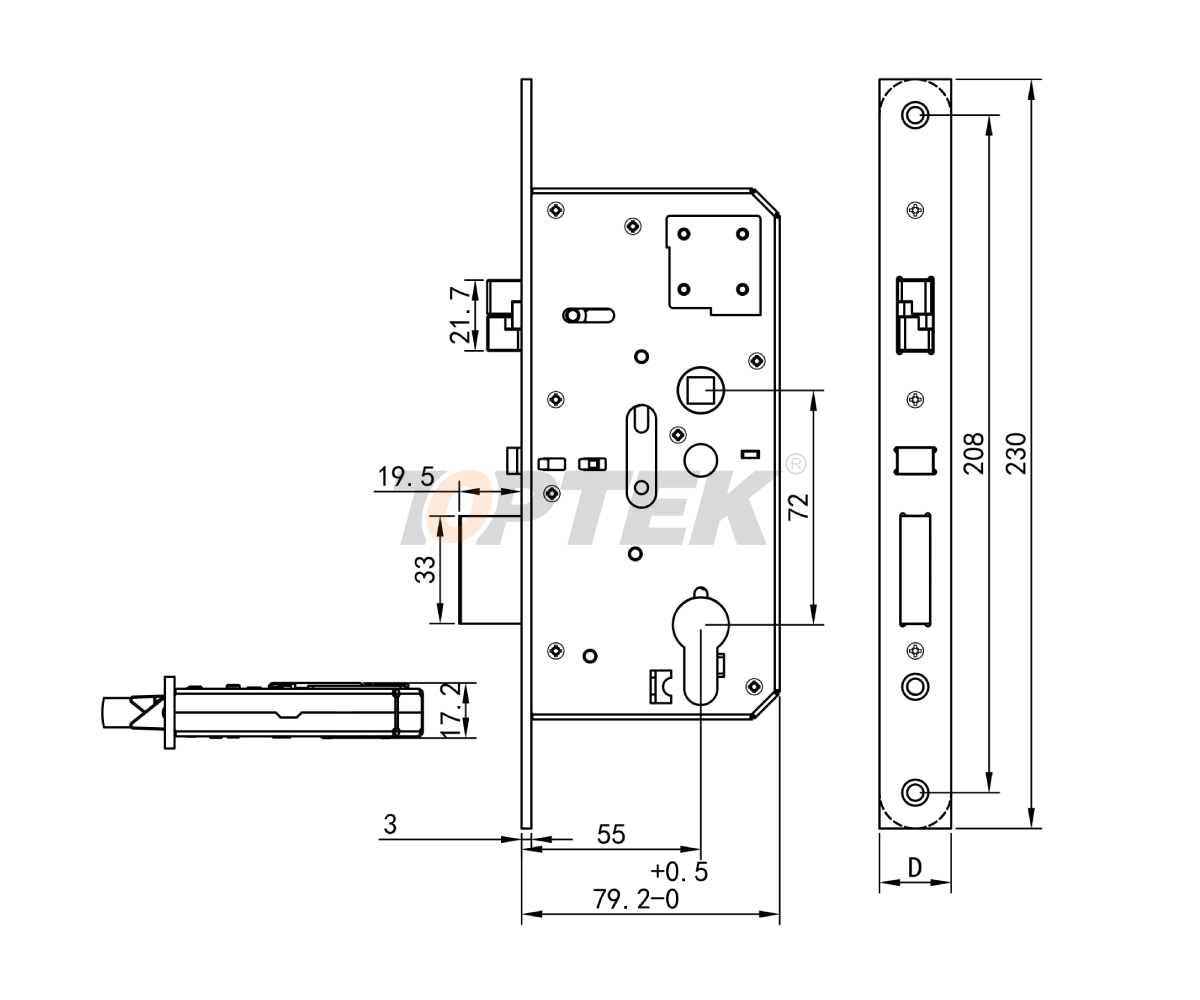

3. Technical Details

door controls

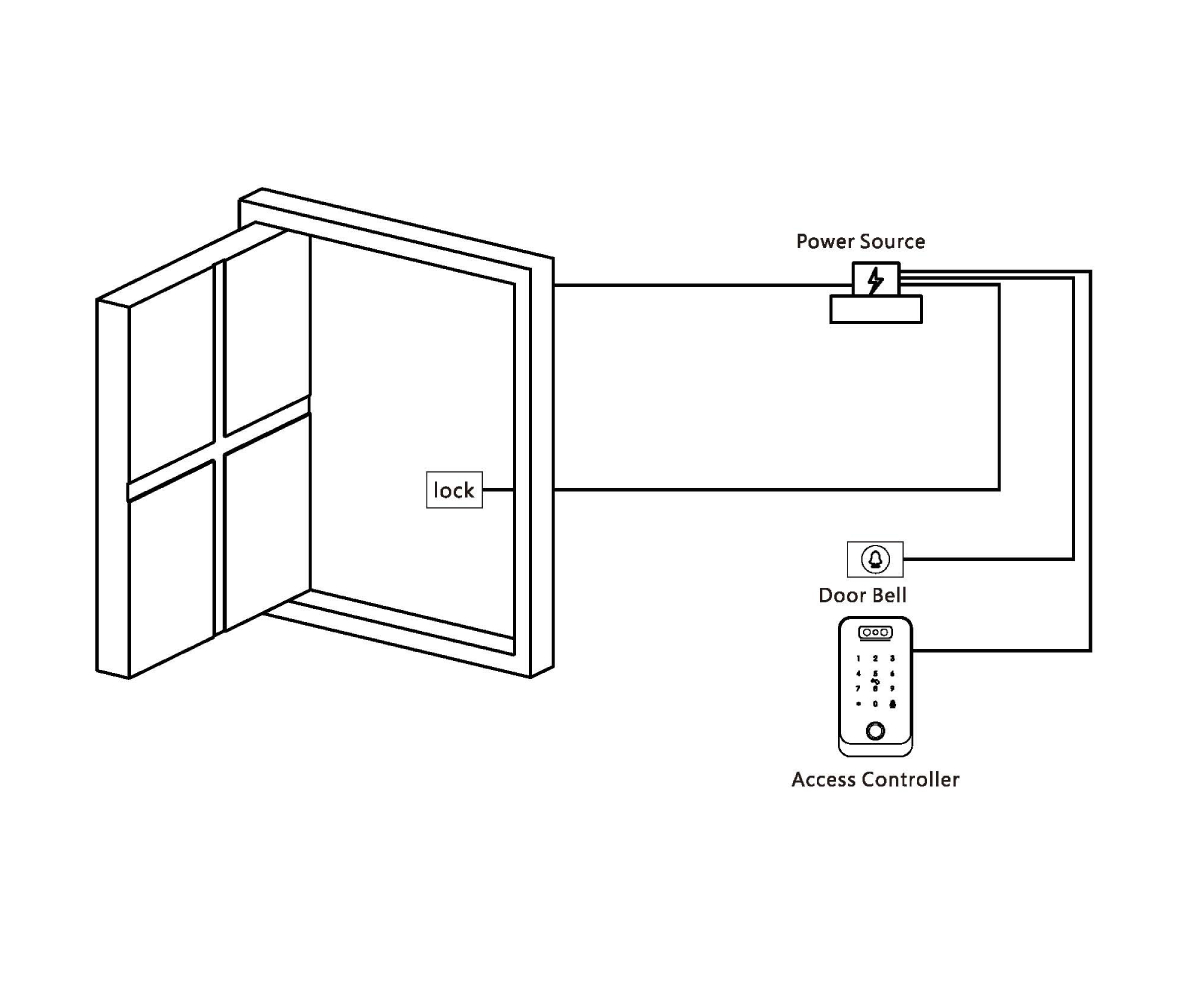

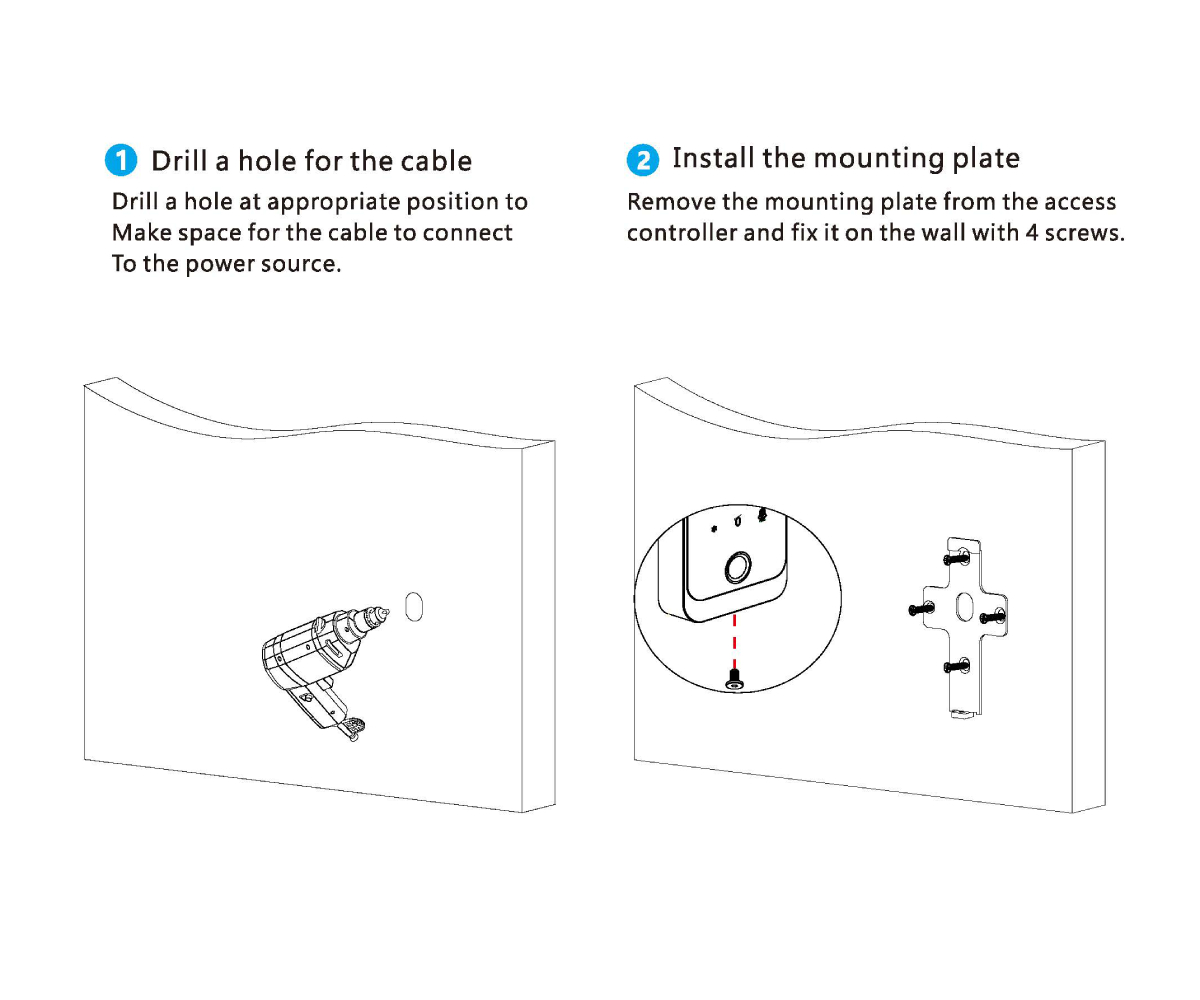

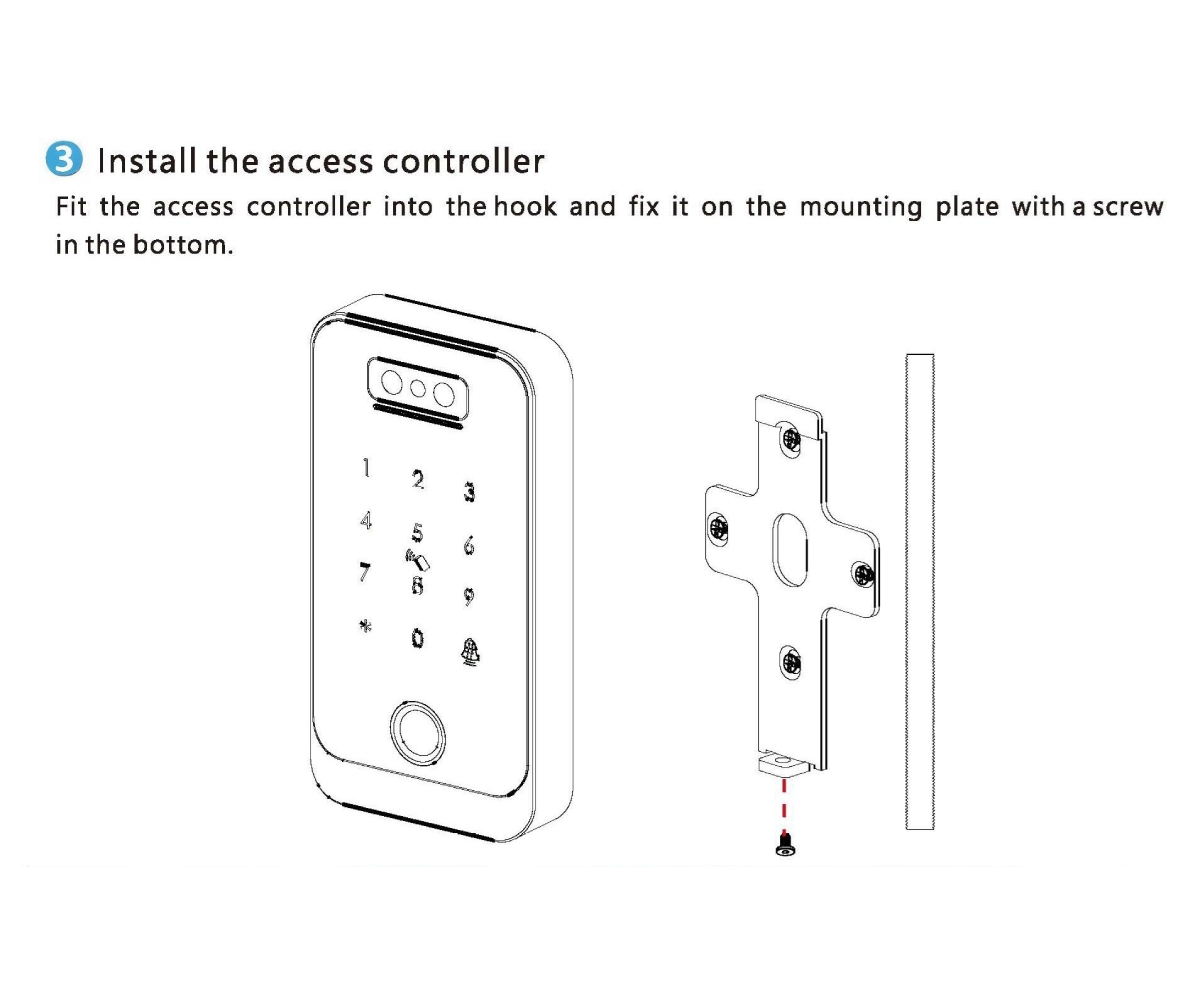

4. Installation illustration

access control iot devices

access control systemsaccess control
