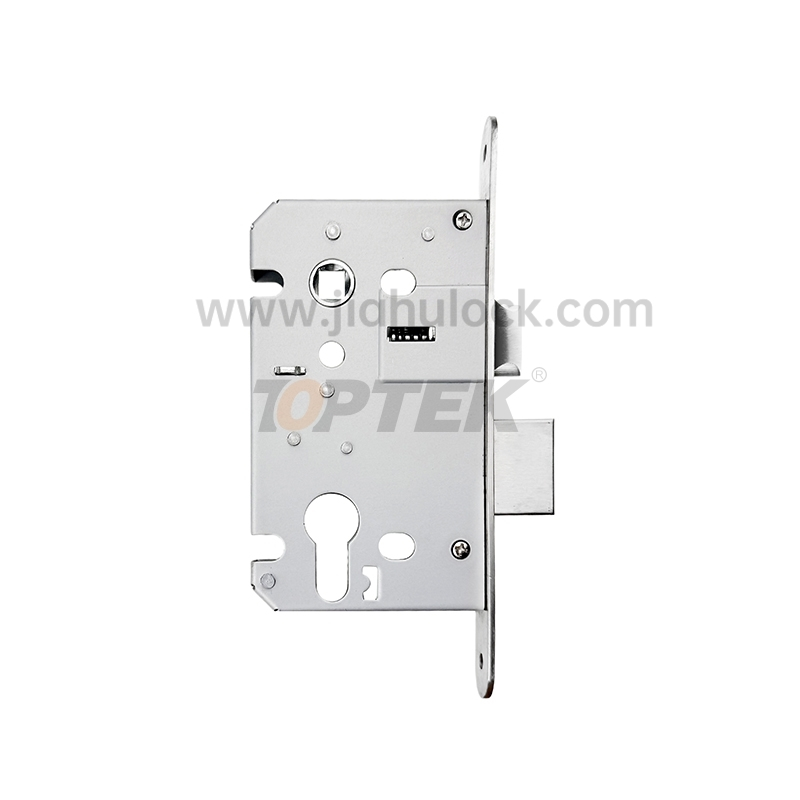

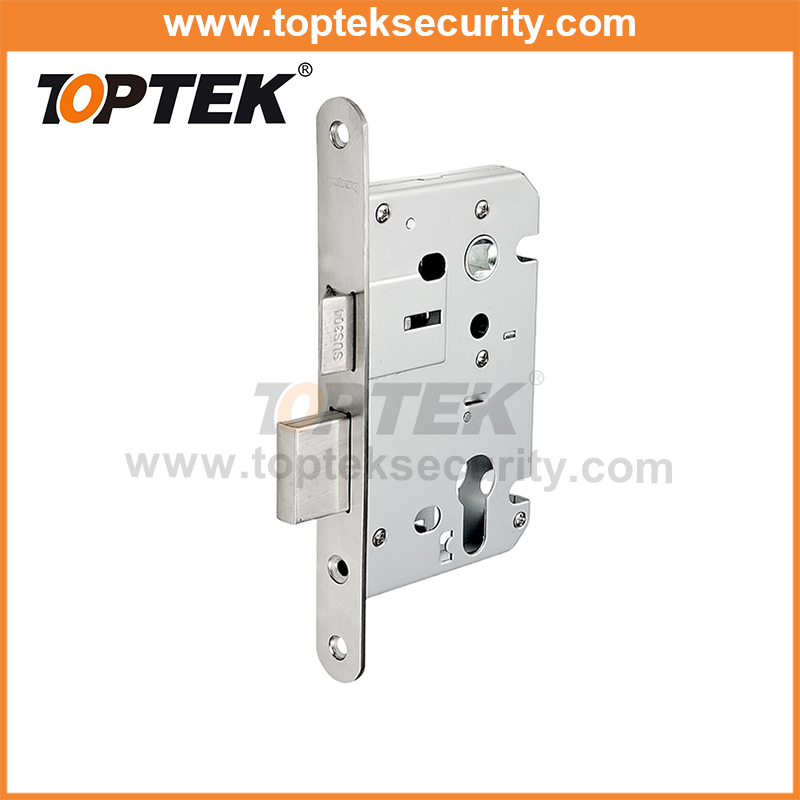

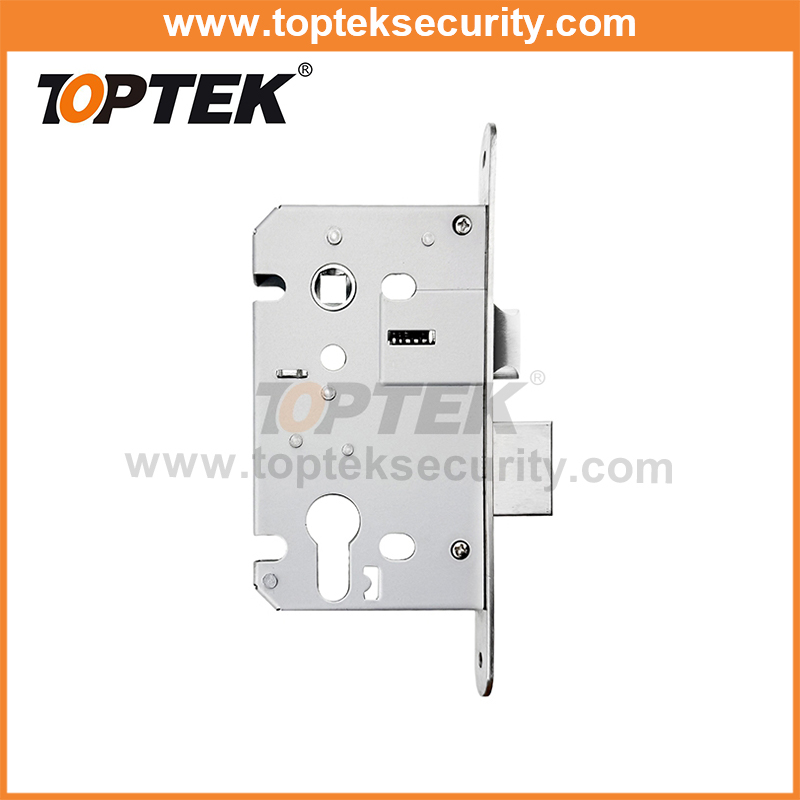

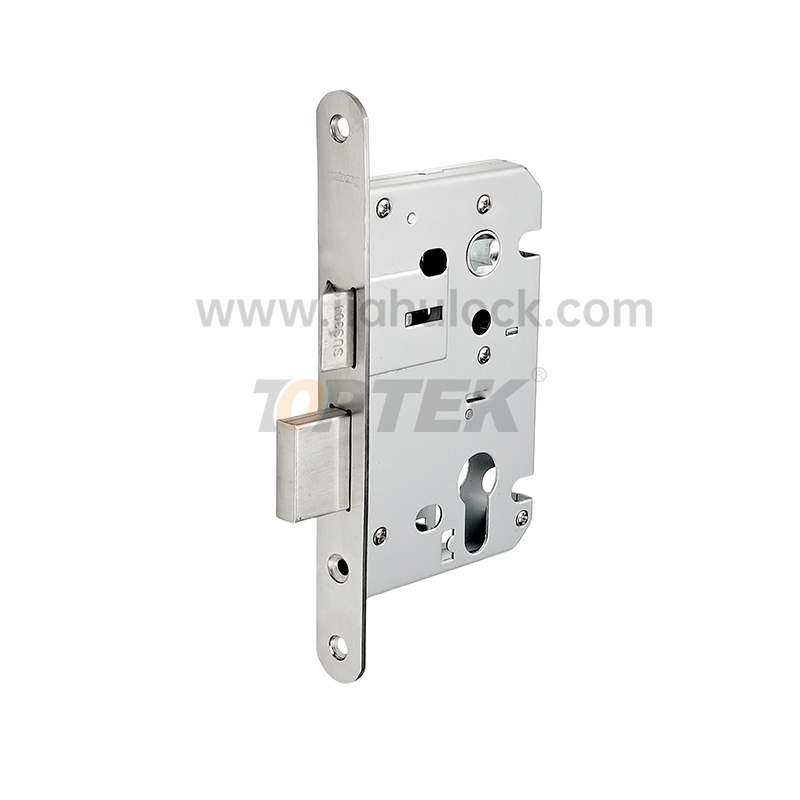

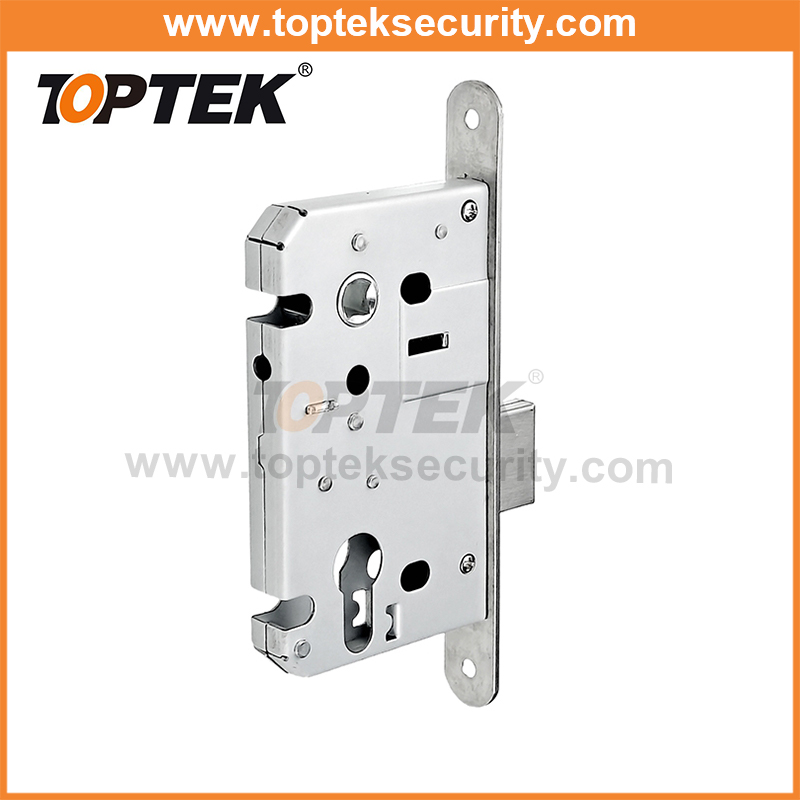

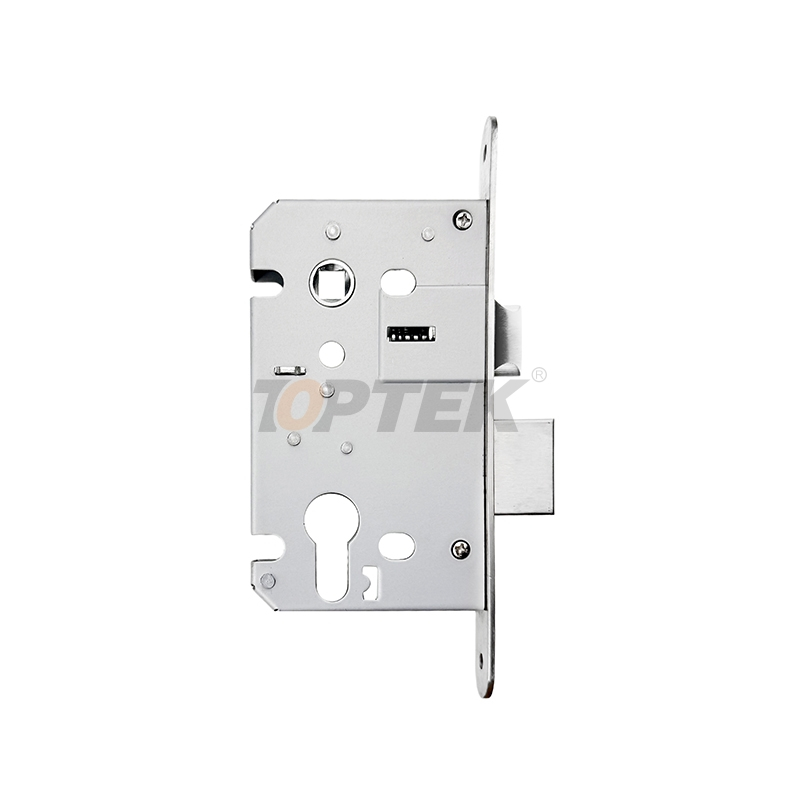

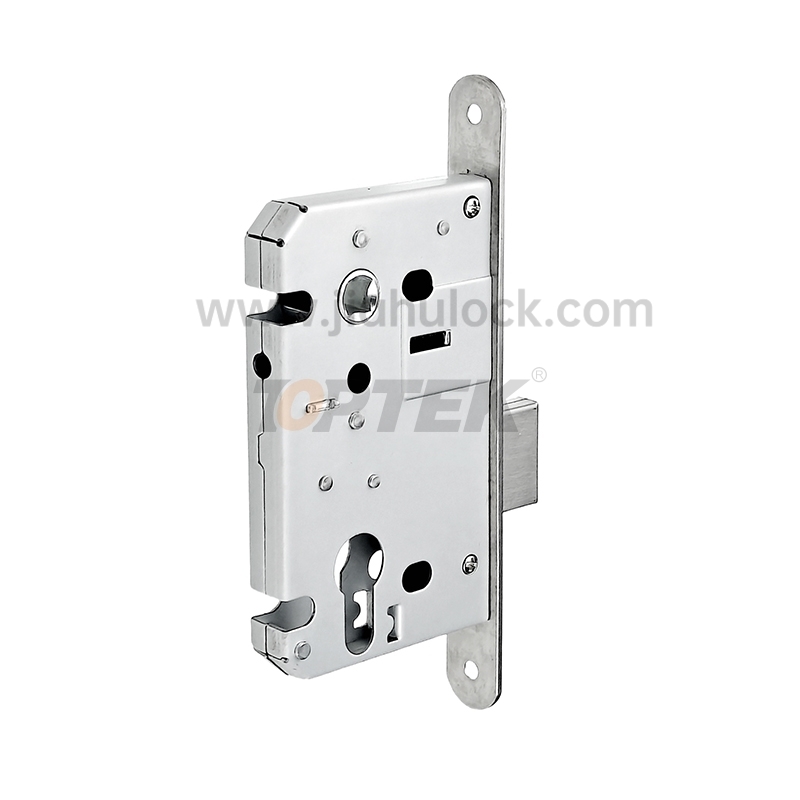

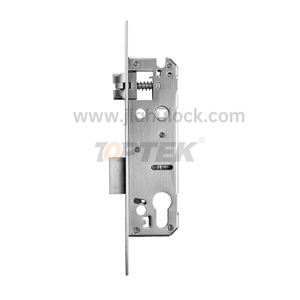

Cost Efficiency Mortise Lock
Our cost efficiency mortise locks are designed for high-frequency use and potential misuse applications, delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these euro profile mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.
This sash lock is the most widely used mortise locks in public buildings,such as shopping centers, hospitals, schools, airports. Door handle only operate latch, and profile cylinder operate latch and deadbolt. The latch can be easily reversed to accommodate both left and right-handed doors.
Features
Qualified mortise lock with cost efficiency
Tested for 100,000 cycles, low maintenance, extended service life
Easy reversible latch
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with standard lever handles and profile cylinders
High-quality satin stainless steel finish, additional PSS, PVD surface finish options are available
Cost Efficiency Mortise Lock
Our cost efficiency mortise locks are designed for high-frequency use and potential misuse applications, delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these euro profile mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.
This sash lock is the most widely used mortise locks in public buildings,such as shopping centers, hospitals, schools, airports. Door handle only operate latch, and profile cylinder operate latch and deadbolt. The latch can be easily reversed to accommodate both left and right-handed doors.
Features
Qualified mortise lock with cost efficiency
Tested for 100,000 cycles, low maintenance, extended service life
Easy reversible latch
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with standard lever handles and profile cylinders
High-quality satin stainless steel finish, additional PSS, PVD surface finish options are available
Size | |
Backset | 50mm |
Center distance | 72mm |
Major parts | |
Forend plate | SS201, Height: 180mm, Width: 20mm, Round Head Thickness: 2.5mm |
Latch | SS201 |
Deadbolt | SS201, 2 throws, Projection: 20mm |
Follower | Press steel, Square hole: 8*8mm |
Strike plate | SS201 |
Lock case | SECC |
Standard |
2. Product Details
Construction
Materials:
• Face plate/striker plate: 201 stainless steel
• Latch/deadbolt: Stainless steel
• Spindle follower: Iron
• Case: 1.2mm thickness
Performance:
✓ Corrosion-resistant
✓ Heavy-duty construction
✓ Reinforced protection
Security
• QB/T 2474-2017 compliant
• Verified security & reliability
Durability
• QB/T 2474-2017 compliant
• 50,000-cycle tested reliability
