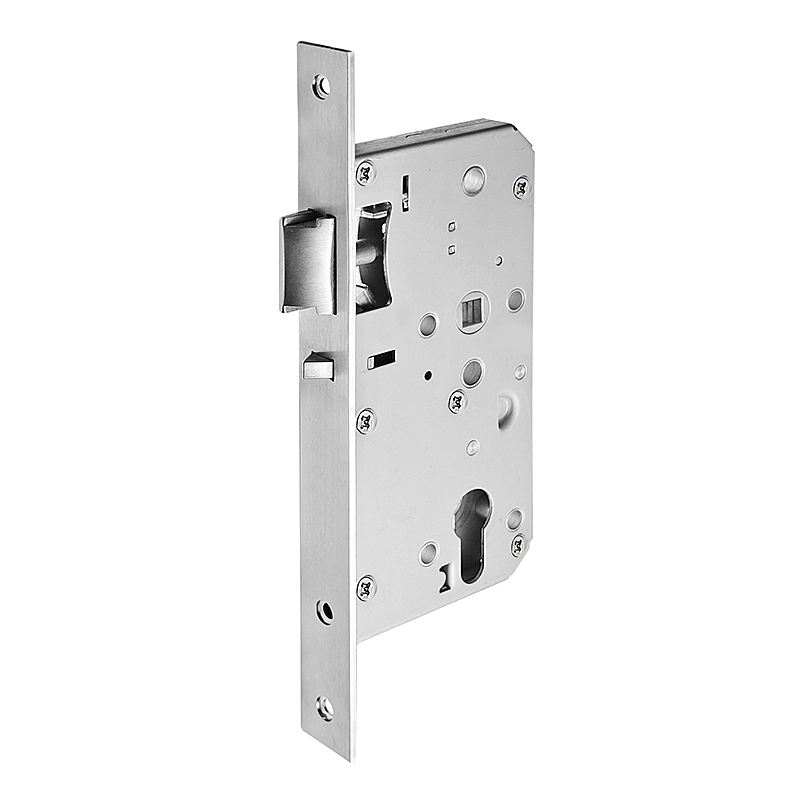

EN 12209 SUS304 CE Classroom Mortise Lock EN72CRL

EN 12209 SUS304 CE Classroom Mortise Lock EN72CRL

1. According to EN 12209-Grade 3, DIN 18251-1

2. EN 1634-1 Fire Rated(Steel Door: 260 Mins, Wooden Door: 132 Mins)
3. CE(Intertek): 3 X 9 1 0 G 4 B C 2 0
4. For wooden or steel doors
5. For single-leaf doors
6. Optional for rebated or non- rebated doors
7. Suitable for external fire and smoke doors
8. Prepared for profile cylinders

Center distance: 72mm
Backset: 55/60/65mm

Quantity:
Availability:





Inquire Add to Basket

CE Classroom Mortise Lock

The CE Classroom Function Mortise Lock is a robust and reliable door hardware solution, specially designed to meet the unique security needs of educational spaces. Crafted with precision and adhering to the highest industry standards, this mortise lock provides superior performance, making it an essential addition to classrooms, lecture halls, and other educational environments.

Features

CE Certified

Tested for 200,000 cycles, low maintenance, extended service life

Easy reversible latch bolt

Suitable for wooden and steel fire doors

Forend and strike plate available in round and square head styles

Compatible with standard lever handles and profile cylinders

High-quality satin stainless steel finish, additional surface finish options available

Mortise Lock Locks Supplier EN 1634 Fire rated door lock Mortise Cylinder Lock Stainless Steel Lock Latchbolt Lock Security Door Lock Classroom Lock Latch Bolt Door Lock En 12209 door lock

Related Products

European Commercial Classroom Locks K72CL

European Commercial Night Latch Lock K72NL

CE Mortise Lock And Panic Function Lock EKFL85EN

EN Commercial Mechanical Mortise K72SL

European Commercial Bathroom Locks K78BL

European Commercial Night Deadbolt Latch Lock K72NDL

Fire Door Mortise HD6072

EN 12209 SUS304 CE Mortise Bathroom Lock EN72WCL

EN 12209 SUS304 CE Mortise Escape Lock EN72EL

EN 12209 SUS304 CE Mortise Sash Lock EN72SL

Magnetic Door Latches And Timber Door DWK5572

Fire-rated Mortise And Silence Mortise Lock KL5072

Magnetic Mortise And Dual-latch WK5572

Fire-rated Latch Mortise K72LBL/DBL

Access Control Lock And Motor Locks EKLSM5572EN

EN 12209 SUS304 CE Passage Mortise Lock EN72LL

EN 12209 SUS304 CE Anti-thrust Mortise Escape Lock EN72ESL

EN 12209 SUS304 CE Night Latch Mortise Lock EN72NL

Size
Backset	55/60/65mm
Center distance	72mm
Major parts
Forend plate	SS304, Height: 235mm, Width: 20/22/23/24mm, Round/Square, Thickness: 3mm
Latch	SS304
Follower	SS304, Square hole: 8*8mm
Strike plate	SS304, Thickness: 1.5mm
Lock case	SECC, Thickness: 1.5mm
Standard
EN12209, EN1634-1, DIN18251
Certification
CE (Intertek)	3 X 9 1 0 G 4 B C 2 0
Fire test (EN1634-1)	Steel fire door: 260mins Timber fire door: 132mins

Size
Backset	55/60/65mm
Center distance	72mm
Major parts
Forend plate	SS304, Height: 235mm, Width: 20/22/23/24mm, Round/Square, Thickness: 3mm
Latch	SS304
Follower	SS304, Square hole: 8*8mm
Strike plate	SS304, Thickness: 1.5mm
Lock case	SECC, Thickness: 1.5mm
Standard
EN12209, EN1634-1, DIN18251
Certification
CE (Intertek)	3 X 9 1 0 G 4 B C 2 0
Fire test (EN1634-1)	Steel fire door: 260mins Timber fire door: 132mins
