EKFLSM5572
1. Product Summary
This stainless steel European-standard mortise lock delivers:
• Anti-friction mechanism for reduced wear and extended lifespan
• Panic function for emergency egress
• High-security design with tamper resistance and advanced encryption
Ideal for:
Electrified Mortise Locks & Motor Lock Case doors in schools, hospitals, offices, retail spaces, and government buildings.
Key benefits:
✓ Superior performance
✓ Easy integration
✓ Robust security
EKFLSM5572
1. Product Summary
This stainless steel European-standard mortise lock delivers:
• Anti-friction mechanism for reduced wear and extended lifespan
• Panic function for emergency egress
• High-security design with tamper resistance and advanced encryption
Ideal for:
Electrified Mortise Locks & Motor Lock Case doors in schools, hospitals, offices, retail spaces, and government buildings.
Key benefits:
✓ Superior performance
✓ Easy integration
✓ Robust security
2. Product Details
Construction
Materials:
• Case: 430 stainless steel
• Face plate & striker plate: 201 stainless steel
• Latch/deadbolt/auxiliary latch: 304 stainless steel
• Spindle hubs/latch bolt/dead latch: High-grade sintered stainless steel
• Springs: Premium spring steel
Key Advantages:
✓ Superior security vs standard die-casting mortises
✓ Enhanced corrosion resistance
✓ 4-position sensing (latch/deadbolt/cylinder/auxiliary latch)
Security
The EKFLSM5572 mortise conforms to EN12209 Grade One with a life test of 200,000 cycles.
Durability
The EKFLSM5572 mortise conforms to Grade One by EN 12209-2016-GZ.
2. Product Details
Construction
Materials:
• Case: 430 stainless steel
• Face plate & striker plate: 201 stainless steel
• Latch/deadbolt/auxiliary latch: 304 stainless steel
• Spindle hubs/latch bolt/dead latch: High-grade sintered stainless steel
• Springs: Premium spring steel
Key Advantages:
✓ Superior security vs standard die-casting mortises
✓ Enhanced corrosion resistance
✓ 4-position sensing (latch/deadbolt/cylinder/auxiliary latch)
Security
The EKFLSM5572 mortise conforms to EN12209 Grade One with a life test of 200,000 cycles.
Durability
The EKFLSM5572 mortise conforms to Grade One by EN 12209-2016-GZ.
Product Accessories
The EKFLSM5572 mortise includes a striker plate, a plastic dust box, and four stainless steel screws.
Product Accessories
The EKFLSM5572 mortise includes a striker plate, a plastic dust box, and four stainless steel screws.

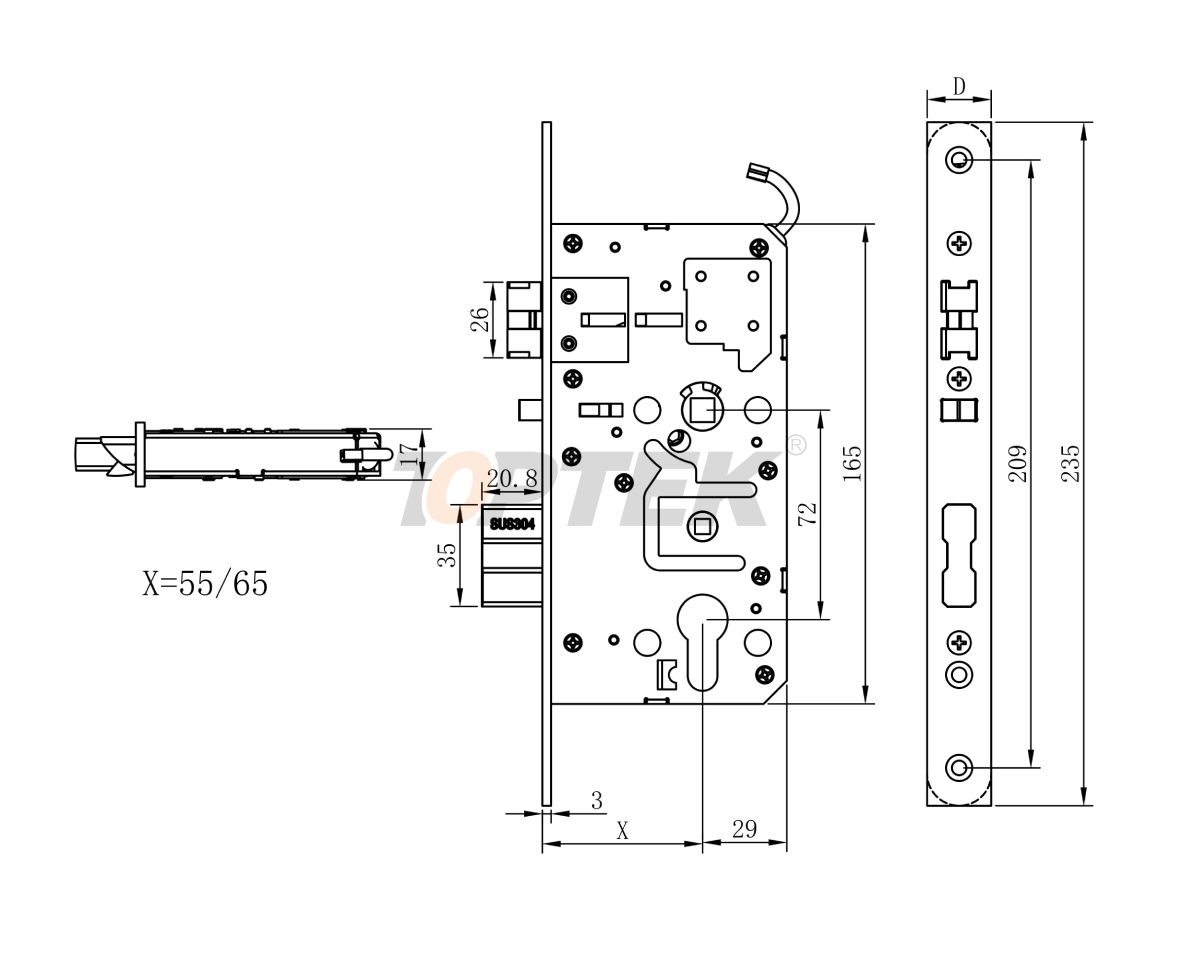

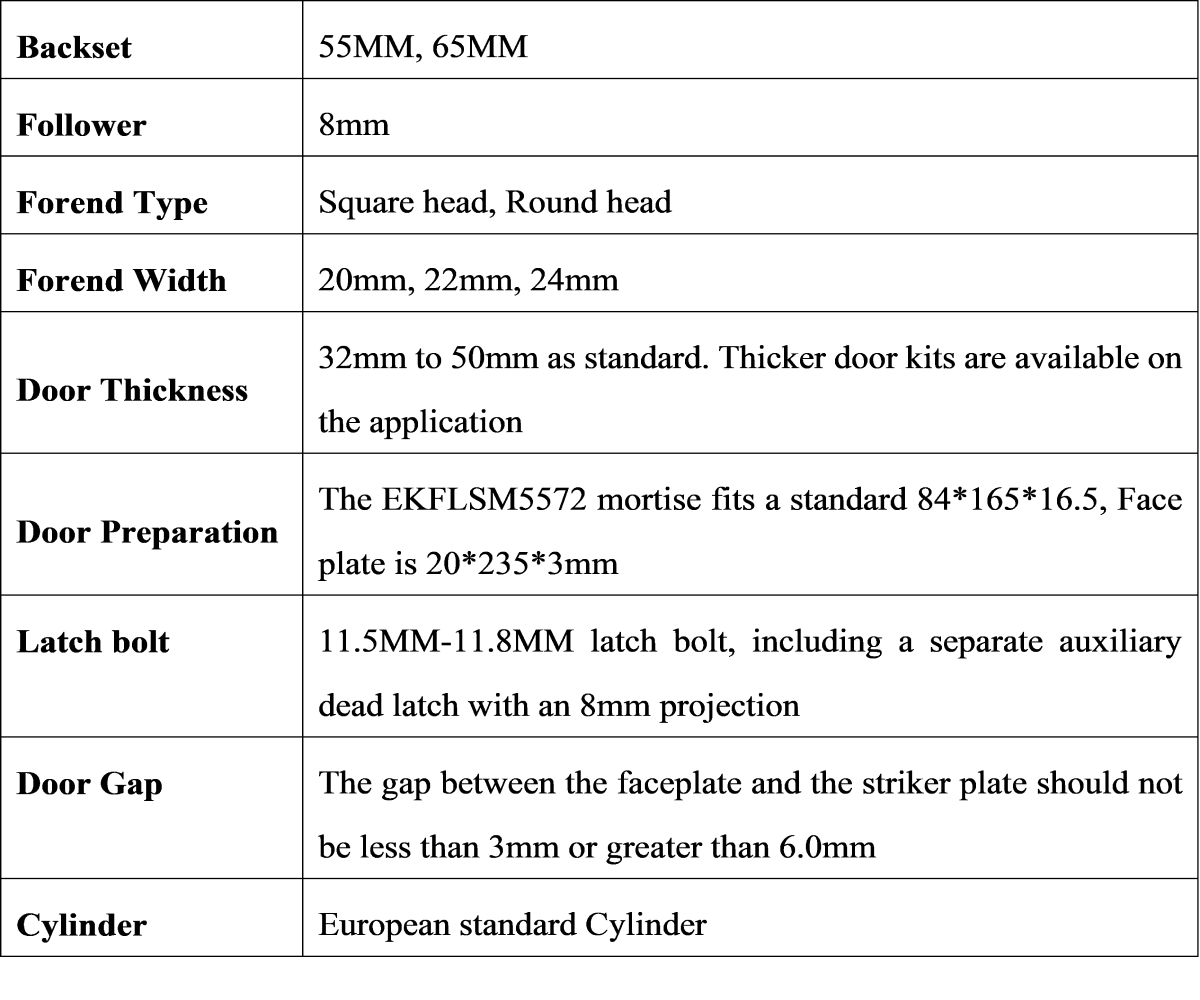

3. Technical Details
3. Technical Details
