Access Control Device EKZM5572

2. Product Details

Construction

Materials & Features:

• Face plate & striker plate: 201 stainless steel with roller bolt for:

✓ Automatic quick release

✓ Adjustable door thickness compatibility

• Latch/deadbolt/auxiliary latch/spindle follower: 304 stainless steel (stronger than standard zinc alloy)

• 4-sensors: Latch, deadbolt, cylinder & auxiliary latch

Security

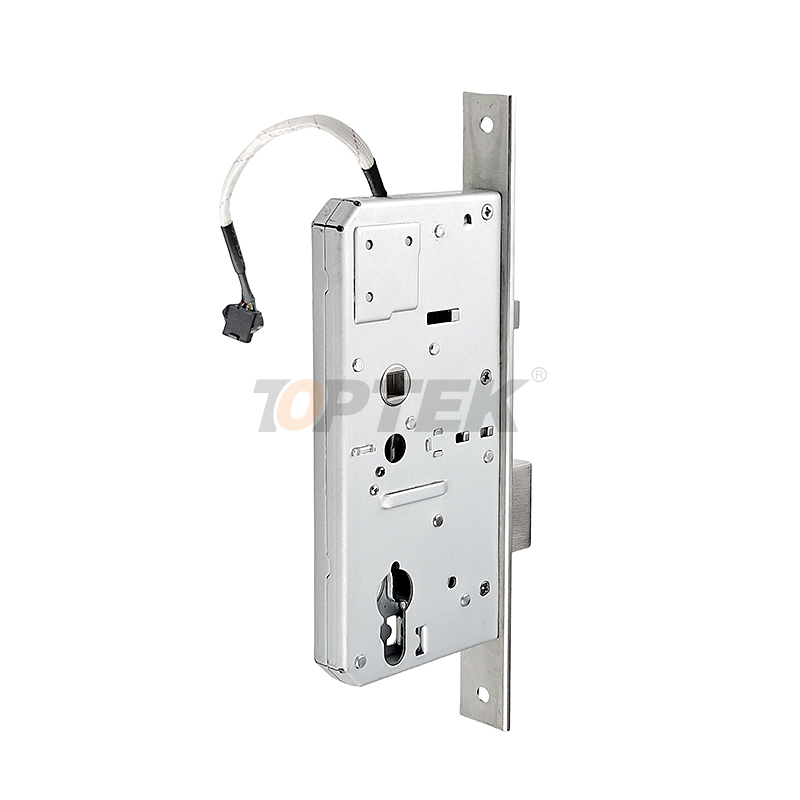

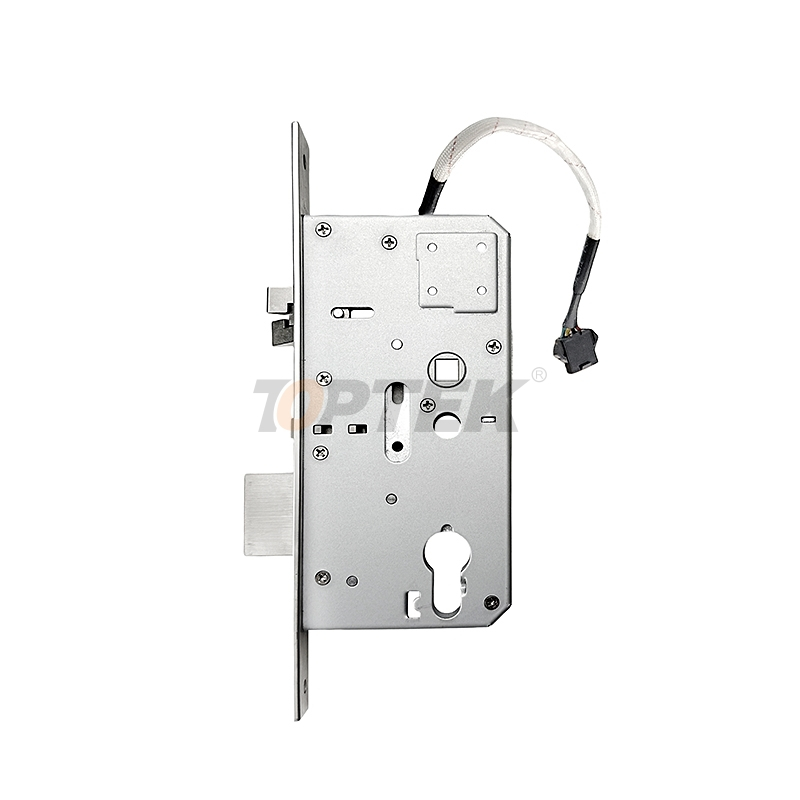

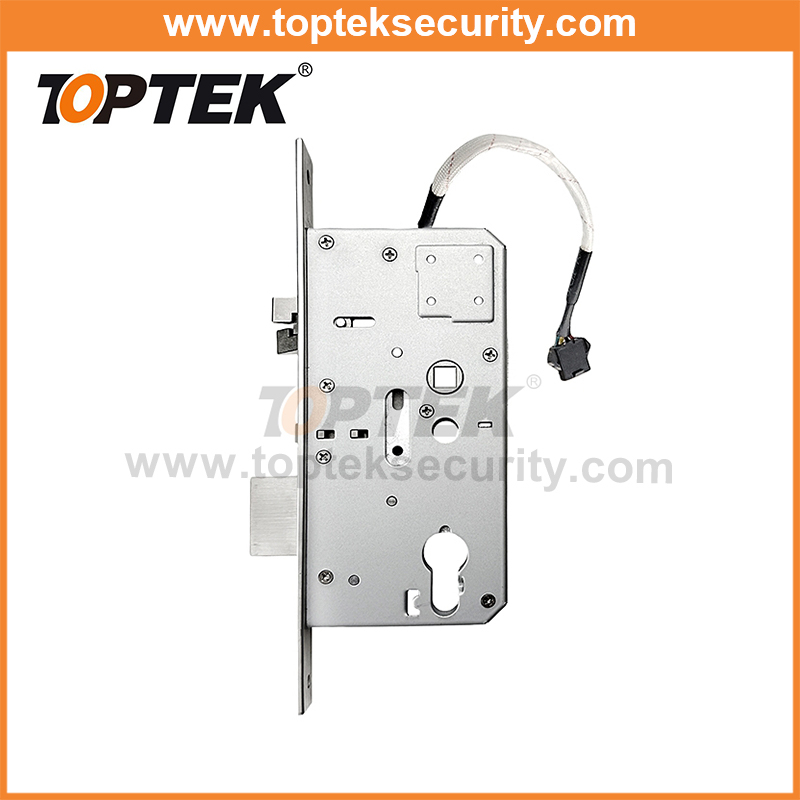

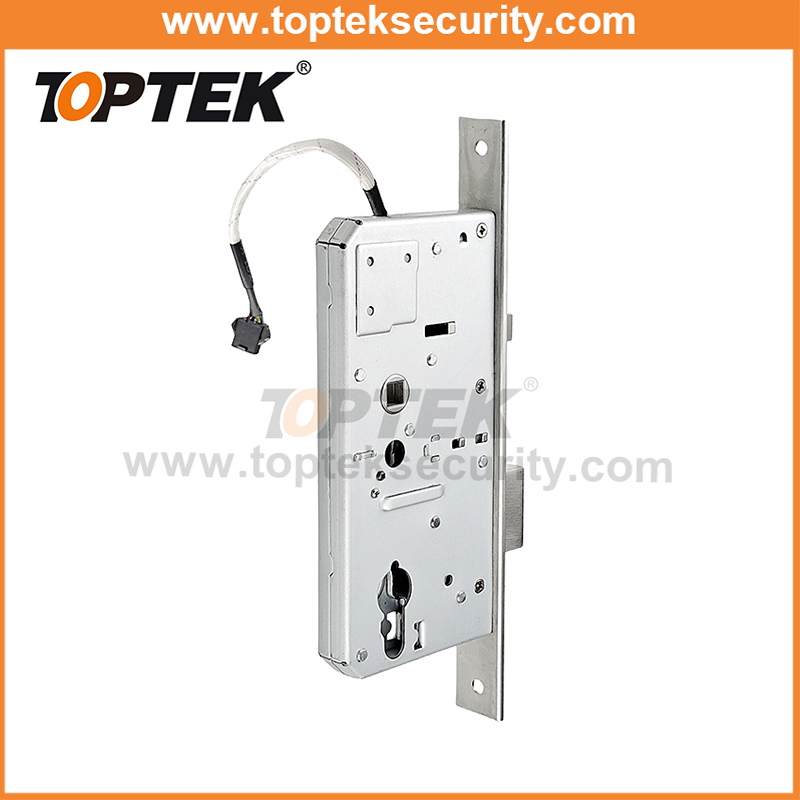

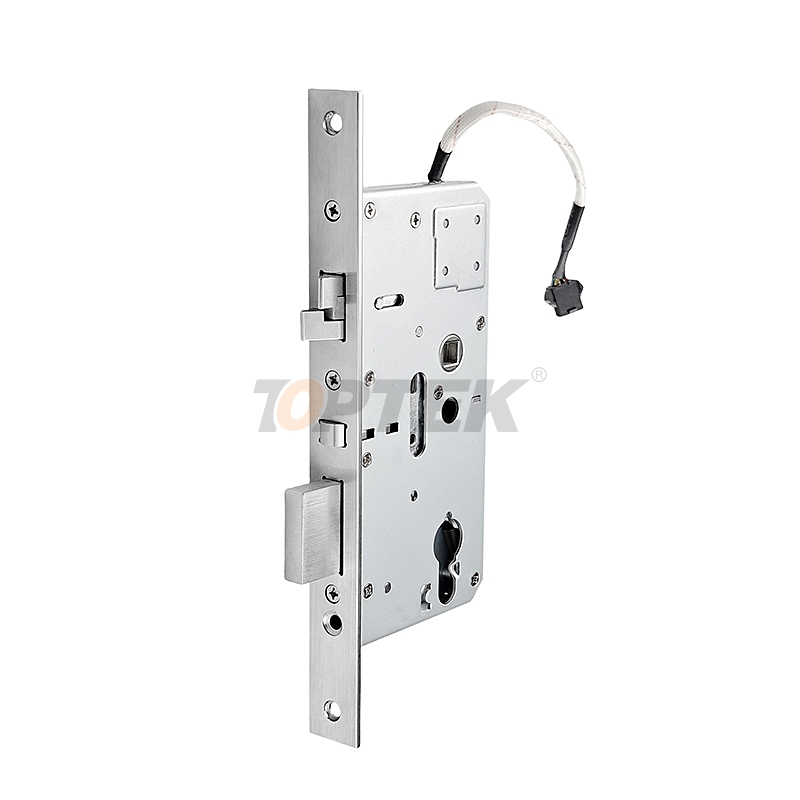

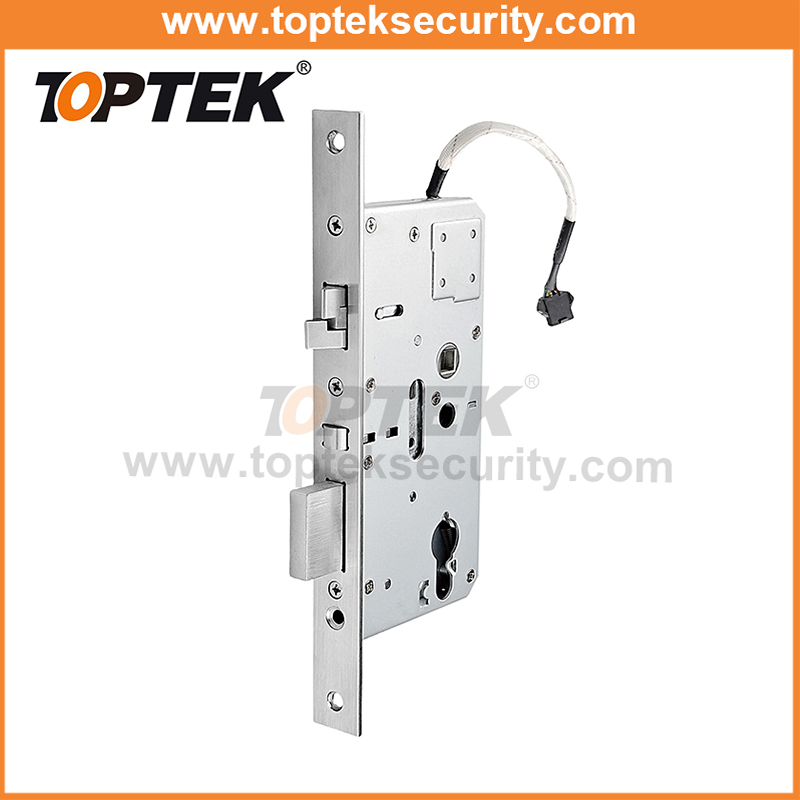

EKZM5572 Mortise Lock

• Certified to EN12209 Grade 1

• 200,000-cycle durability rating

• Premium materials and construction for:

✓ Enhanced vandal resistance

✓ Superior security reliability

Durability

The EKZM5572 mortise conforms to Grade One by EN 12209-2016-GZ. The mortise is manufactured using high-quality materials for a longer service life.

Product Accessories

The EKZM5572 mortise includes a striker plate, a plastic dust box, and four stainless steel screws.

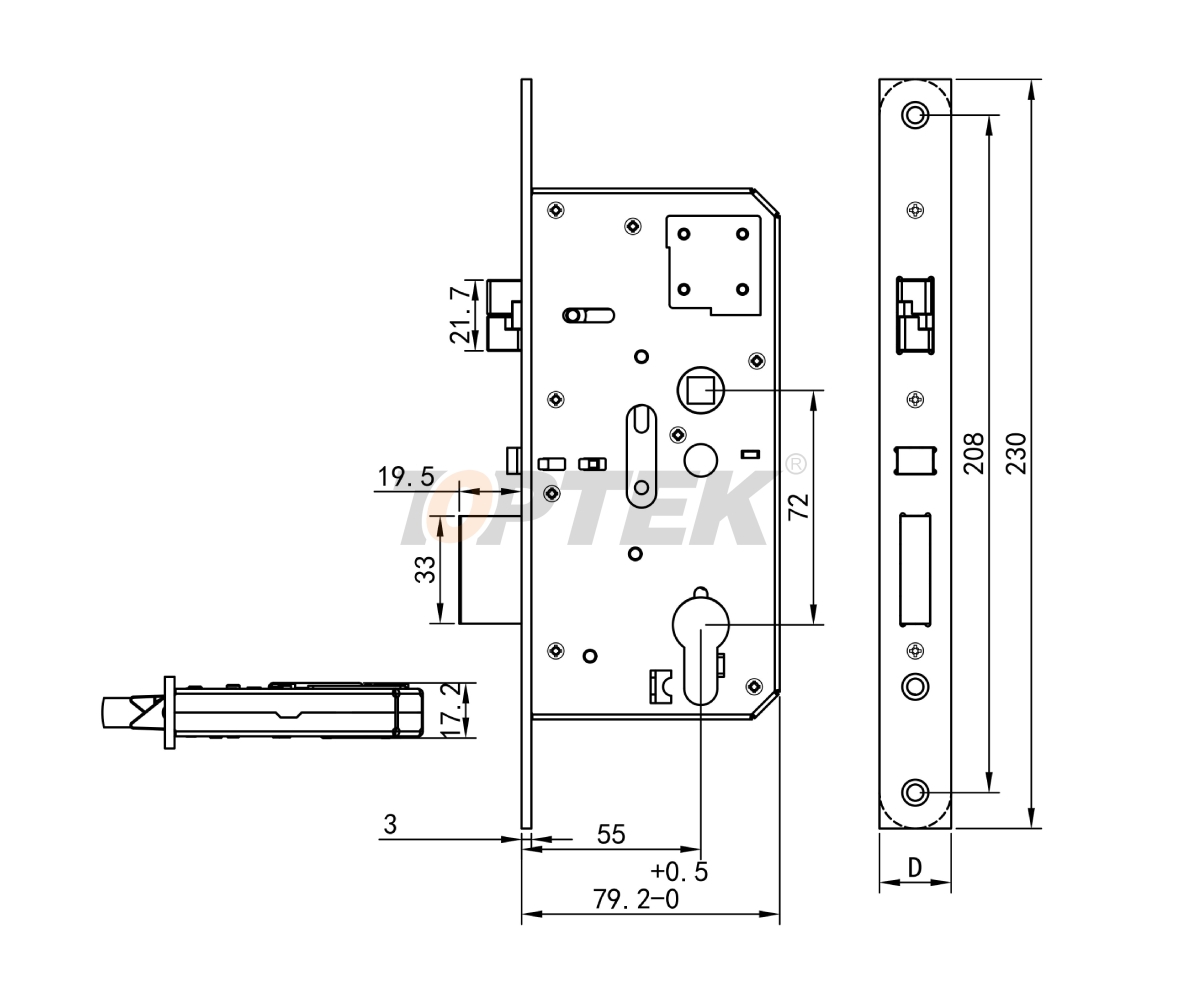

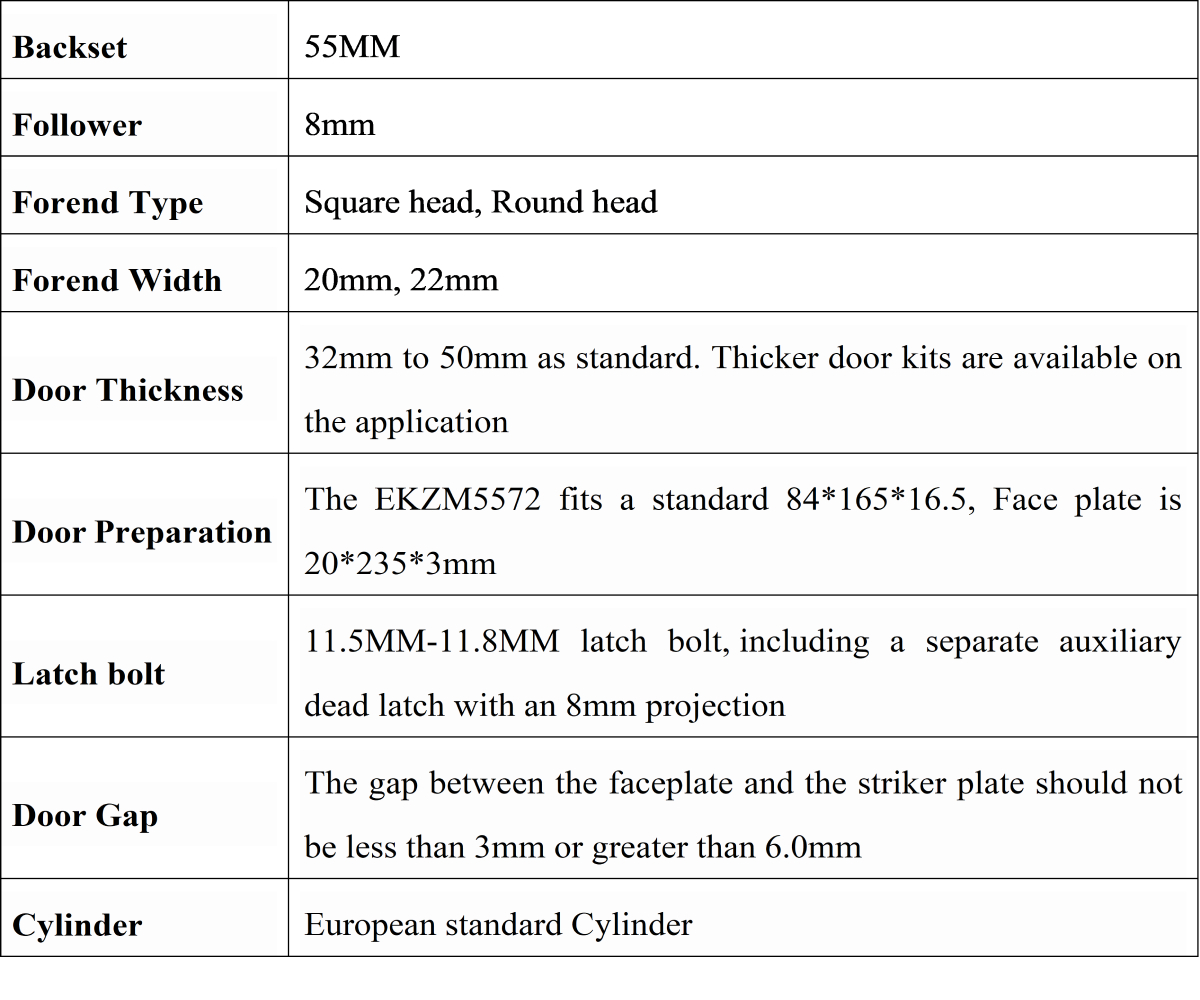

3. Technical Details
