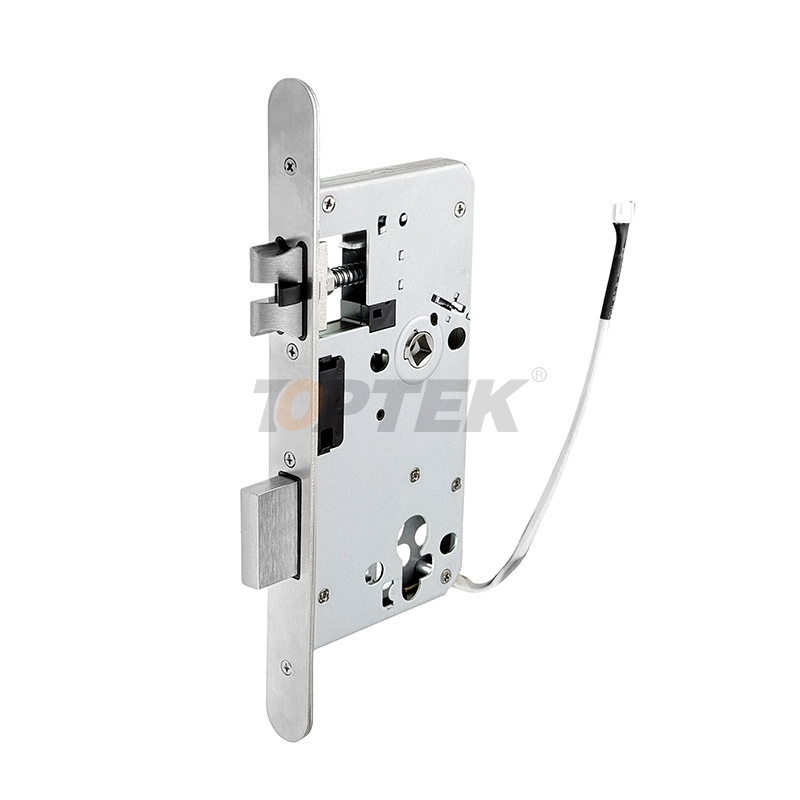

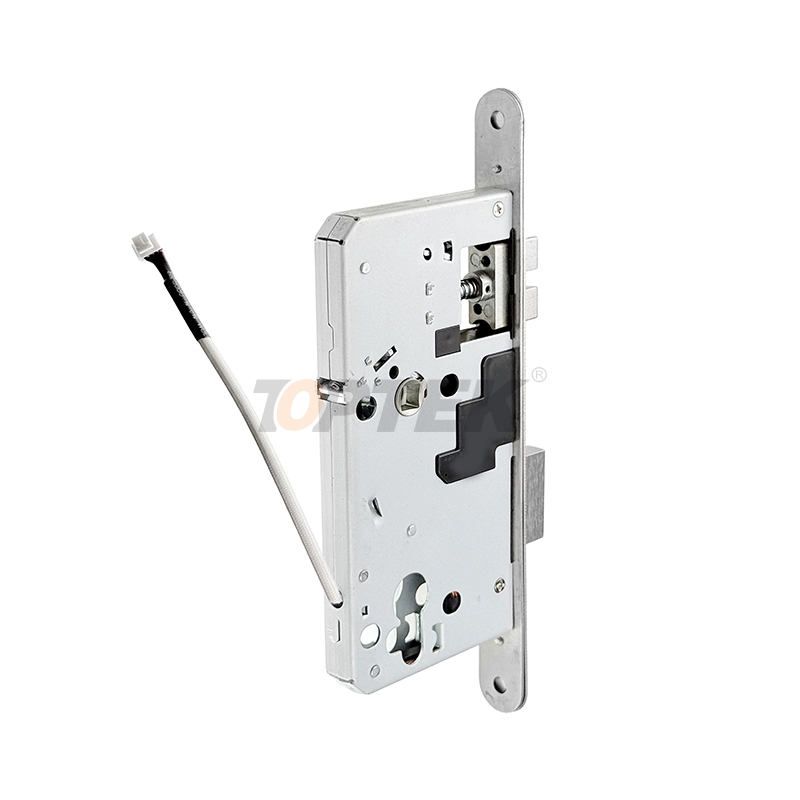

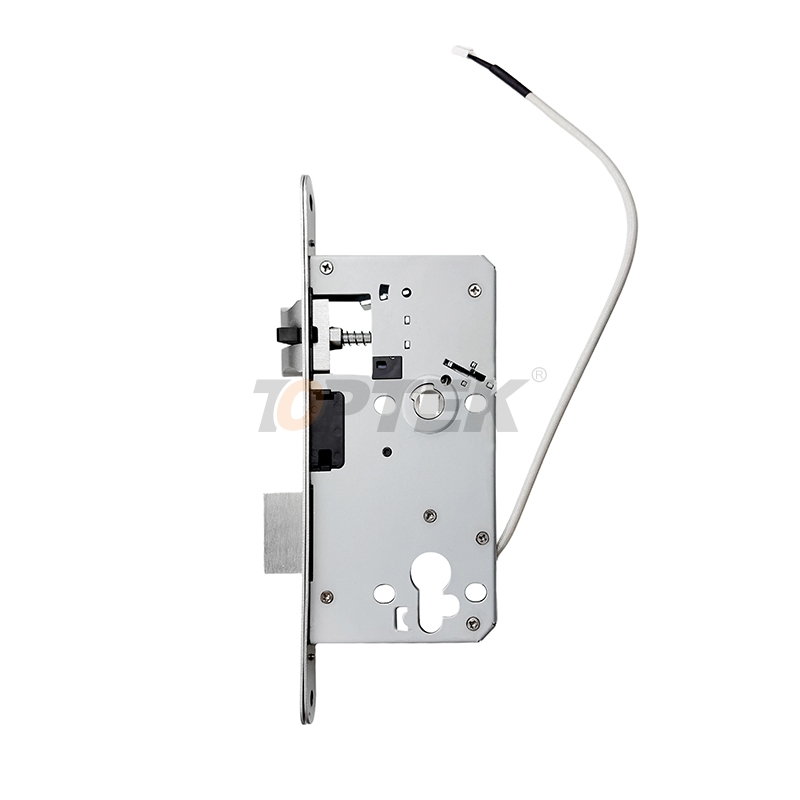

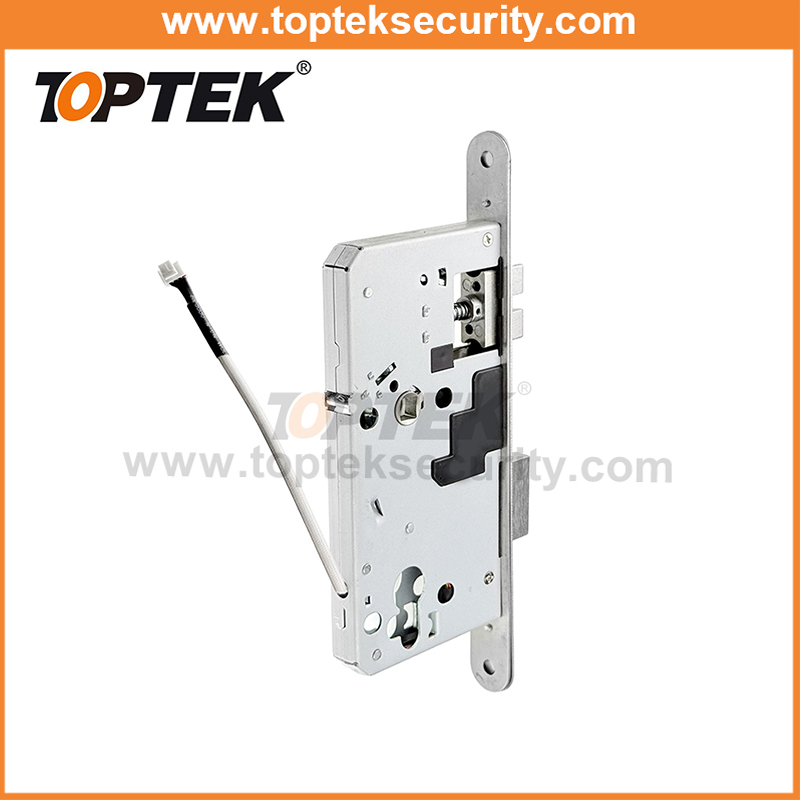

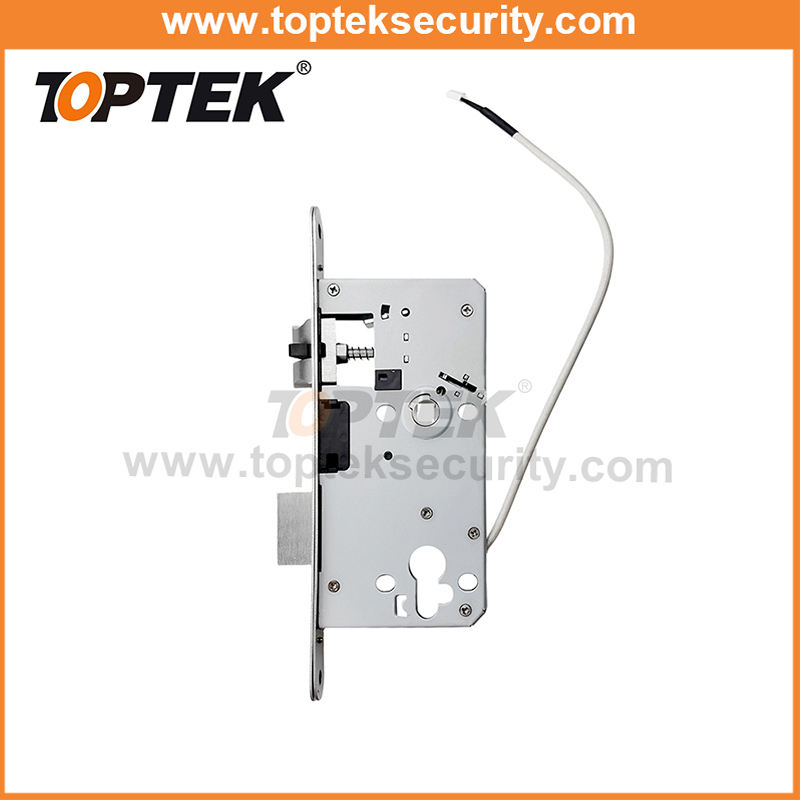

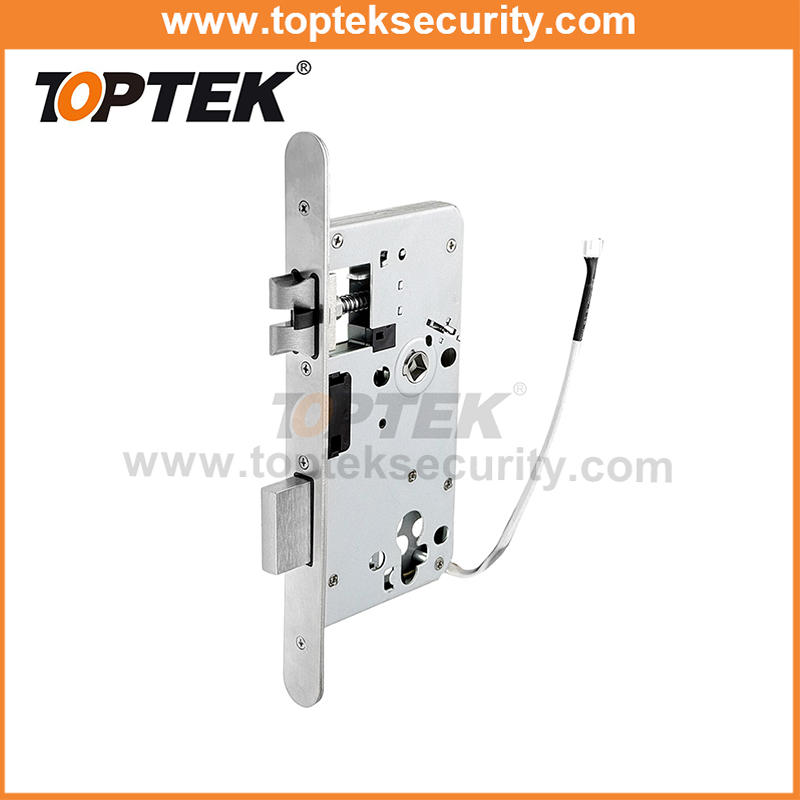

Electric Mortice with A Battery
Electric Mortice with A Battery Electric Mortice with A Battery
Electric Mortice Electric Mortice
electric mortise lock electric mortise lock

loading

Electric Mortice with A Battery EKFLM5572(UT)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

EKFLM5572(UT)

1. Product Summary

EKFLM5572(UT) Smart Mortise Lock


Key Features:

✓ Self-powered with built-in battery & motor (no external wiring)

✓ Triple access: Fingerprint/Passcode/Key cylinder

✓ One-touch security: Lift the handle to engage the deadbolt

✓ Quick exit: Press the handle down for emergency egress

✓ Quiet operation: Plastic-cased latch/deadbolt reduces noise



Operation Modes:

• Secure: Lift the exterior handle to extend the deadbolt

• Convenient: Interior handle retracts latch instantly

• Emergency: Push-down interior release



Ideal For:

• Homes • Offices • Public buildings

Electric Mortice with A Battery

Electric Mortice

electric mortise lock

2. Product Details

Construction


Materials & Specifications:

• Latch/Deadbolt: Zinc alloy (high-strength)

• Case: 1.5mm iron housing (structural base)

• Spindle follower: 304 stainless steel (corrosion-resistant)

• Face plate/Striker plate: 304 stainless steel (wear-resistant)



Security

• Certified to EN12209 Grade 3

• Provides advanced anti-tamper protection



Durability

• EN12209 Grade 3 certified

• Proven durability under extreme conditions

• Maintains consistent long-term performance


Product Accessories

The EKFLM5572(UT) mortise includes a striker plate, a plastic dust box, and four stainless steel screws.

Electric Mortice with A Battery

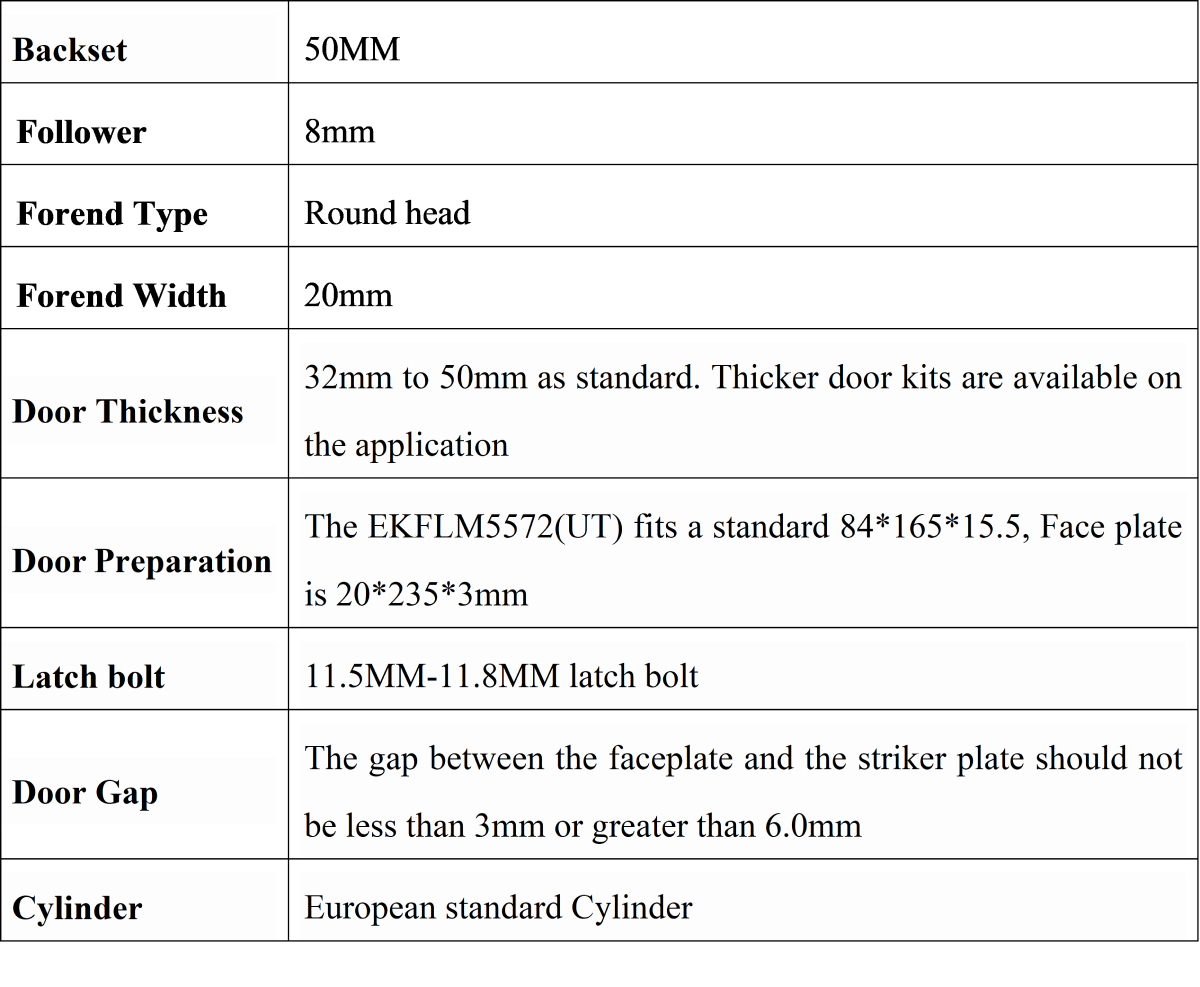

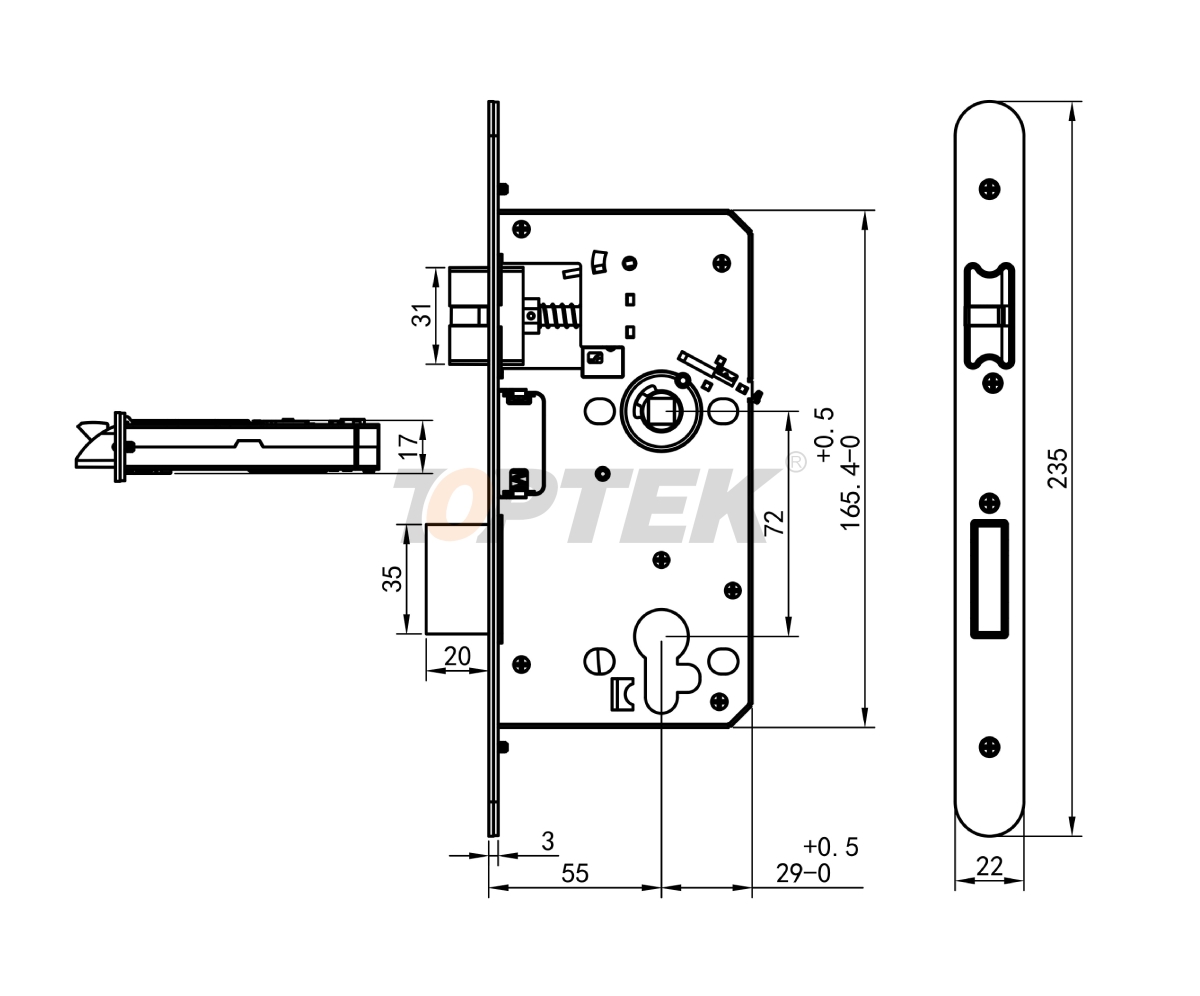

3. Technical Details

Electric Mortice
